HWC & Combi Setups

Cylinder cupboard spare indication: Minimum 700mm deep, 800mm wide, for allowing a 600mm diameter cylinder with a 700mm condensate tray, enough space for pipework installation.

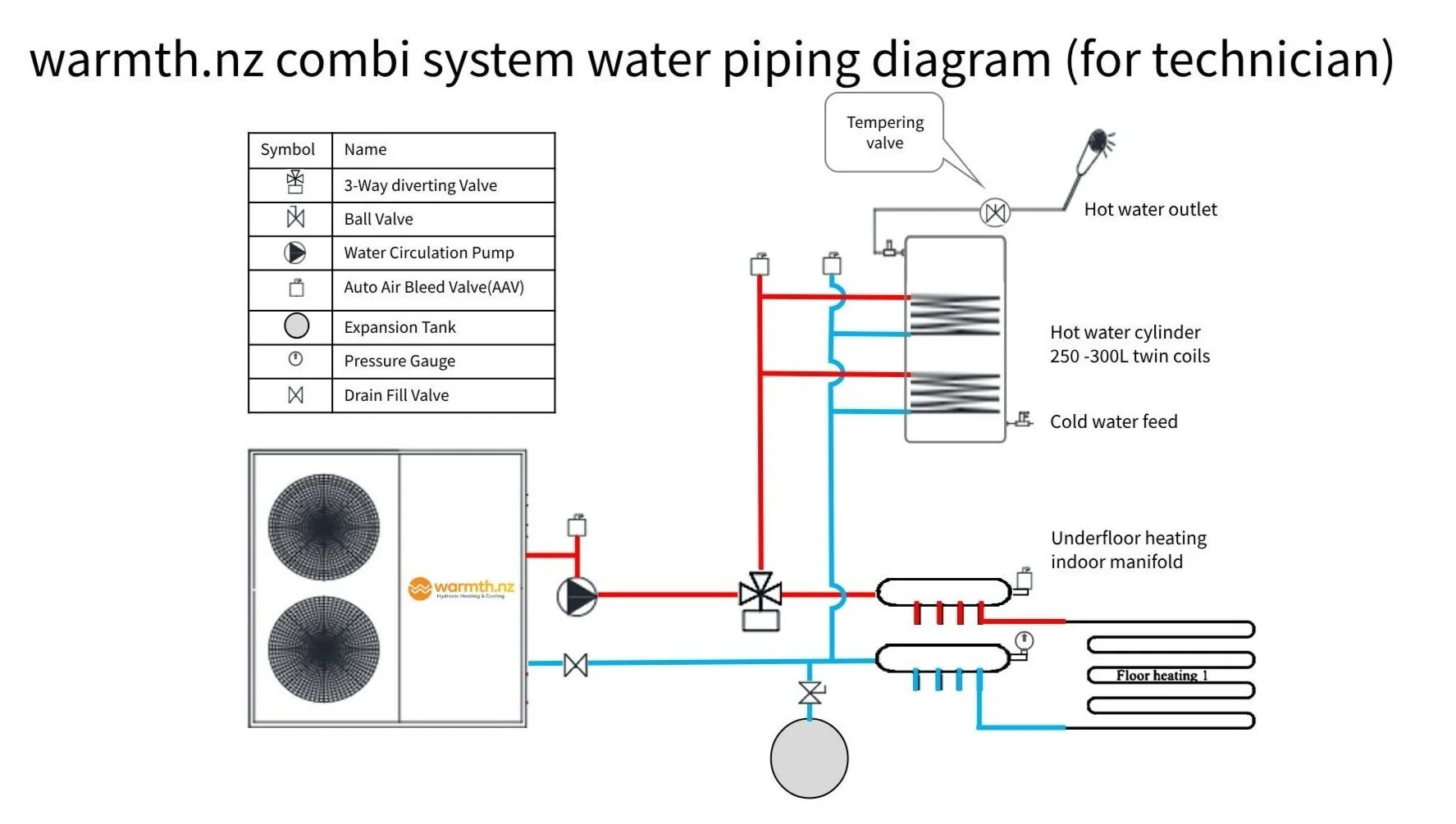

For a combi system, when a manifold and a cylinder are in the same cupboard, we normally looking for a 1500mm wide linen cupboard.

600mm wide cylinder + 150mm valve connection + 500mm ~ 1200mm manifold (depending on how many loops)

For more specific space required onsite, please talk to our project manager.
