Pre-Wiring & Diagrams

Single Phase Units data

Single Phase Units:

3 Phase Units data

Three Phase Units:

Hydronic heating system diagram, depicting components like a heat pump, switch board, manifold, 3-way valve, and hot water cylinder with connections for live cables, Cat6 cables, 3 core cables, and water pipes. Includes labels like isolator, thermostat, Wi-Fi module, temperature probe, and floor probe. Logo and text 'warmth.nz Hydronic Heating & Cooling' in the top left corner.

3.1 Combi Set up in same room:

Diagram of hydronic heating and cooling system with heat pump, manifold, switch board, and thermostat connections.

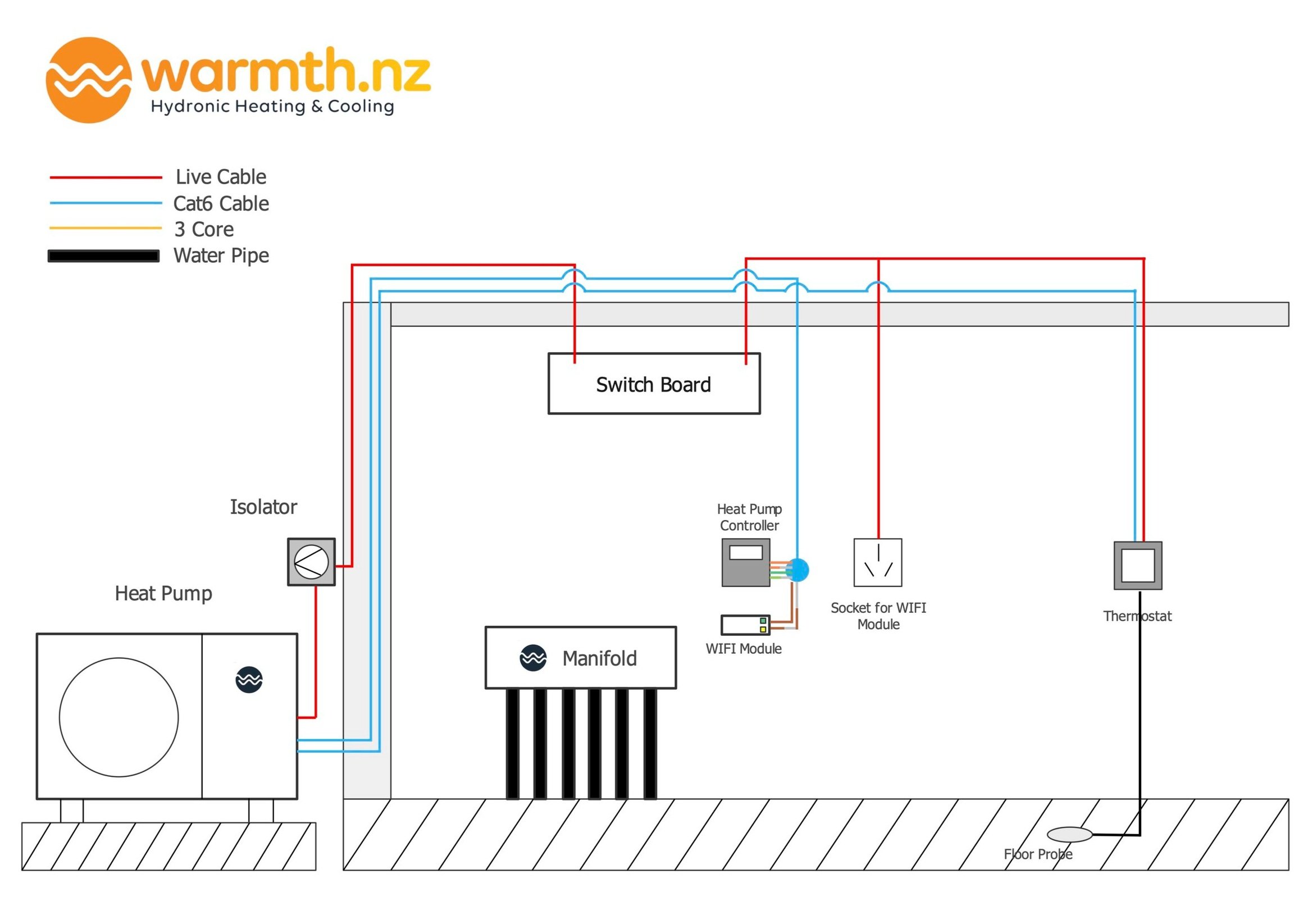

1.1 Underfloor Heating Only:

3.2 Combi In Different Room:

Diagram of a hydronic heating and cooling system including components like a heat pump, manifold, HWC (hot water cylinder), thermostat, and various cables. Features labeled components such as switchboard, isolator, heat pump controller, WiFi module, 3-way valve, and probes. Color-coded lines represent live cable, Cat6 cable, 3-core cable, and water pipe.

3.3 Combi With Wiring Centre & Actuators:

Diagram of a hydronic heating and cooling system, featuring components like a heat pump, switchboard, wiring center, manifold, HWC (hot water cylinder), thermostats, and connecting cables for live, Cat6, 3-core, and water pipes. Includes elements like a time clock, isolator, actuators, WiFi module socket, and a 3-way valve with temperature and floor probes.

5.1 Multiple Heat Pump Cascade Setup:

Diagram of a hydronic heating and cooling system showing components labeled "Slave," "Master," isolators, a switch board, WiFi module, heat pump controller, and buffer tank with temp probe. Red and blue lines represent live and Cat6 cables. Branding "warmth.nz" is included.

3.4 Underfloor and Hot Water Combi with Buffer Tank:

Diagram of a hydronic heating and cooling system setup by warmth.nz, featuring heat pump, buffer tank, HWC, manifold, wiring center, and thermostat connections. Includes live cables, Cat6 cables, three-core cables, and water pipes. Components like switch board, WiFi module, isolator, circulation pump, and probes are illustrated.

4.1 Fan Coil and Underfloor Heating and Buffer Tank. Coming soon…

Diagram of a hydronic heating and cooling system setup including heat pump, manifold, buffer tank, switch board, HWC, and various cables and pipes. Labels indicate live cable, Cat6 cable, 3 core cable, and water pipe.

4.3 Fancoil with Combi (Underfloor Heating and Hot Water) with Buffer Tank and Wiring Centre:

4.2 Multiple Fan Coils with UF (incl. buffer tank and wiring centre):

Diagram of a hydronic heating and cooling system featuring a heat pump, wiring center, switch board, buffer tank, fancoil units, and various cables and pipes. It includes labels for live cable, Cat6 cable, 3-core cable, and water pipe.

1.2 Underfloor Only with Wiring Centre:

Diagram illustrating the setup of a hydronic heating and cooling system by warmth.nz, including a heat pump, wiring center, switch board, manifold with actuators, heat pump controller, and thermostat connections. Various cables, such as live cable, Cat6 cable, and 3 core, are shown, along with a Wi-Fi module socket and floor probes.

2.1 Hot Water only ( heat pump to cylinder) - Coming soon…
